The 2 of 5 interleaved code


This code allows only the coding of digits. They are coded 2 by 2 so the number of digits must be even.

Let's learn encoding system.

The first digit of a pair is encoded with 5 black bars and the second digit with 5 white bars
The bars can be fine or thick (the thick ones make 2,2 to 3 times the width of fines)
There are always 2 thick bars among the 5 bars
2 special characters are used as delimitor of beginning and end.
A checksum can be added; here is the calculation method :
The digits are numbered from right to left, then we compute X the sum of even digits and Y the sum of odd digits.
Let's calculate Z = X + 3 * Y
Let M the number divisible by 10 immediately superior to Z
The checksum is : M - Z
In the following table the narrow bars are symbolized by "N" and the thick ones by "W".

Value	Encoding
0	NNWWN
1	WNNNW
2	NWNNW
3	WWNNN
4	NNWNW
5	WNWNN
6	NWWNN
7	NNNWW
8	WNNWN
9	NWNWN

Exemple of checksum for : 65732
(2 + 7 + 6) x 3 + 3 + 5 = 53 ---> M = 60
60 - 53 = 7
New code with the checksum : 657327 (Note that the number of digits including checksum is even.)

Bar code making.

Since we can create the bar code pattern it remains us to draw it on the screen and to print it on a paper sheet. Two approaches are possible :

• The graphic method where each bar is "drawn" as a full rectangle. This method enable to compute the width of each bar with a one pixel precision and so we can work with widths which are perfect multiple of the used device pixel. This give us a good accuracy specially if the device have a low density as it's the case with screens and inkjet printers. This method require special programming routines and does not allow to make bar codes with a current software.
• The special font in which each character is replaced by a bar code. This method allow the use of any software like a text processing or a spreadsheet. (For example OpenOffice, the free clone of MSoffice !) The scale settings according to the selected size can bring away small misshaping of the bar drawing. With a laser printer there's no probs.

All the found 2 of 5 interleaved barcodes on the net (Incomplete demonstration font) aren't free, several times expensive, and with uncertain quality; the width module isn't always permanent  in the font definition. I've decided consequently to draw entirely a 2 of 5 interleaved font and to propose it for download. I test it on a laser printer with size 15, what gives a small barcode with a width of about 1,2 mm/digit, result : reading at 100% ! On a good inkjet printer, we can use the same size 15 for the same result.

The font " code25I.ttf "

Since 2 of 5 interleaved barcodes encode pairs of digit my font contain the 100 pairs from 00 to 99. 2 additionnal characters are reserved for start and end symbol.

Structure of a 2 of 5 interleaved barcode

A 2 of 5 interleaved barcode will be build up in the following way :

• A start delimitor symbolized by the character E
• As many characters as necessary, each character represents 2 digits.
• An end delimitor symbolized by the character E

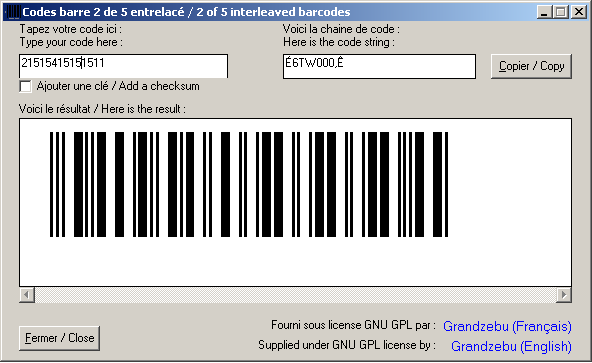

A small test program.

The Code25I$ function can be re-used in any other program written with Visual BASIC 6; it can also be copied just as it is in a VBA macro linked to an Excel or Word document.

Public Function Code25I$(chaine$, Optional key As Boolean)
  'V 2.0.0
  'Parametres : * une chaine
  '             * un drapeau vrai si une cle doit etre ajoutee
  'Parameters : * a string
  '             * a flag true if a key must be added
  'Retour : * une chaine qui, affichee avec la police CODE25I.TTF, donne le code barre
  '         * une chaine vide si parametre fourni incorrect
  'Return : * a string which give the bar code when it is dispayed with CODE25I.TTF font
  '         * an empty string if the supplied parameter is no good
  Dim i%, checksum&, dummy%
  Code25I$ = ""
  If Len(chaine$) > 0 Then
    'Verifier si caracteres valides
    'Check for valid characters
    For i% = 1 To Len(chaine$)
      If Asc(Mid$(chaine$, i%, 1)) < 48 Or Asc(Mid$(chaine$, i%, 1)) > 57 Then Exit Function
    Next
    'Ajouter si necessaire la cle
    'Add if necessary the checksum
    If key Then
      For i% = Len(chaine$) To 1 Step -2
        checksum& = checksum& + Val(Mid$(chaine$, i%, 1))
      Next
      checksum& = checksum& * 3
      For i% = Len(chaine$) - 1 To 1 Step -2
        checksum& = checksum& + Val(Mid$(chaine$, i%, 1))
      Next
      chaine$ = chaine$ & (10 - checksum& Mod 10) Mod 10
    End If
    'Verifier si la longueur est paire
    'Check if the length is odd
    If Len(chaine$) \ 2 <> Len(chaine$) / 2 Then Exit Function
    'Calculer la chaine de code
    'Calculation of the code string
    For i% = 1 To Len(chaine$) Step 2
      dummy% = Val(Mid$(chaine$, i%, 2))
      dummy% = IIf(dummy% < 94, dummy% + 33, dummy% + 101)
      Code25I$ = Code25I$ & Chr$(dummy%)
    Next
    'Ajoute START et STOP / Add START and STOP
    Code25I$ = Chr$(201) & Code25I$ & Chr$(202)
  End If
End Function

Since the first publication of this page, I'd received a Delphi version :
